High Speed Refrigerated Benchtop Centrifuge NovaFuge B115-20R
.....
Detail
High Speed Refrigerated Benchtop Centrifuge NovaFuge B115-20R
Main Features:
Microprocessor control, reliable drive system
Stainless steel chamber and ABS housing
Temperature range from -20 to+ 40 oC. Pre-cooling during standstill
Maintenance-free brushless induction motor with frequency drive to ensure soft start
Motorized Lid lock which can be easily opened with pneumatic spring support

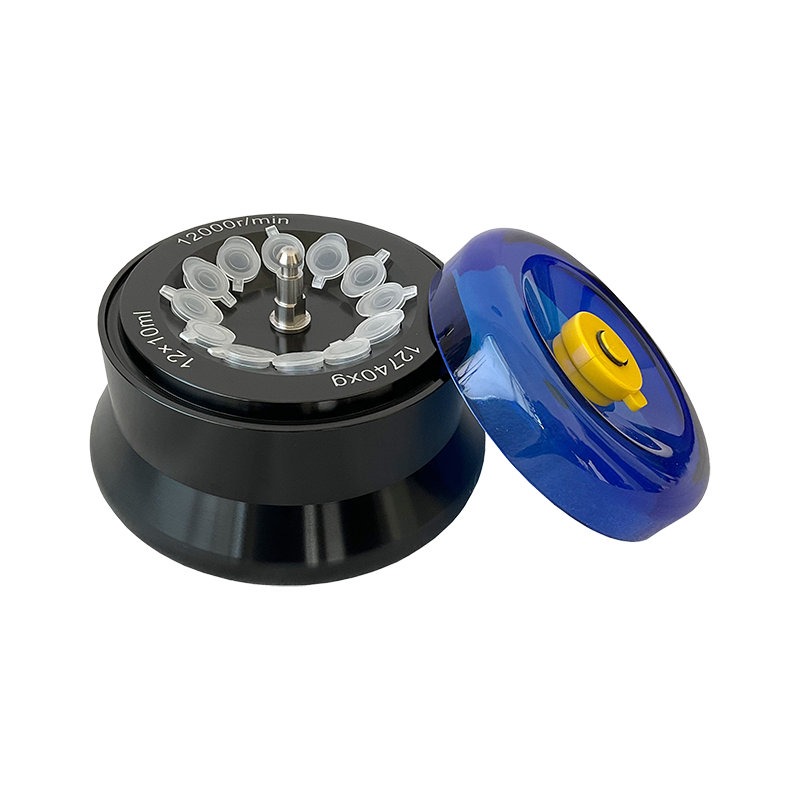

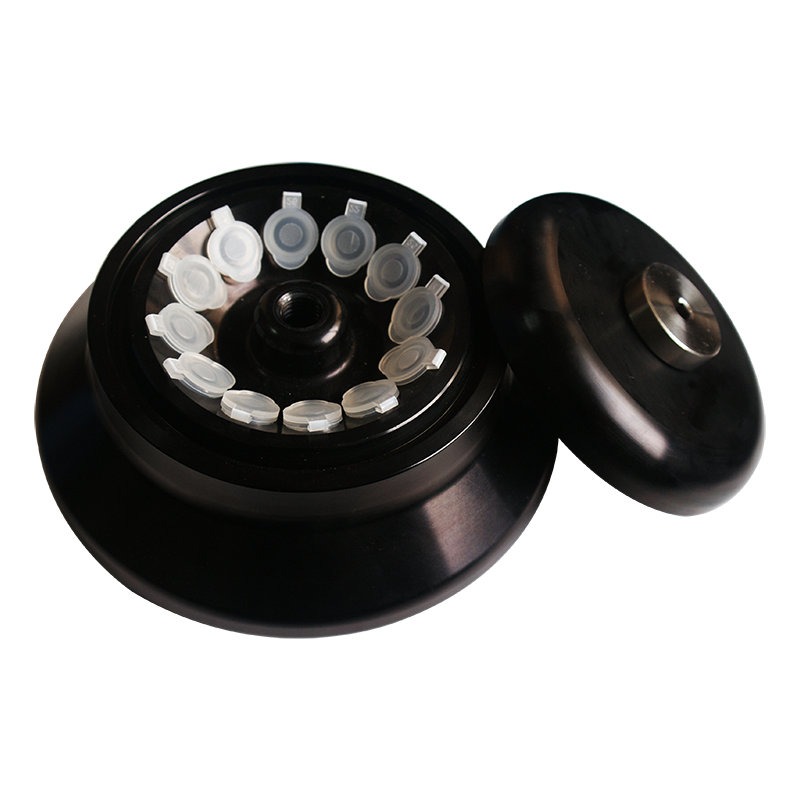

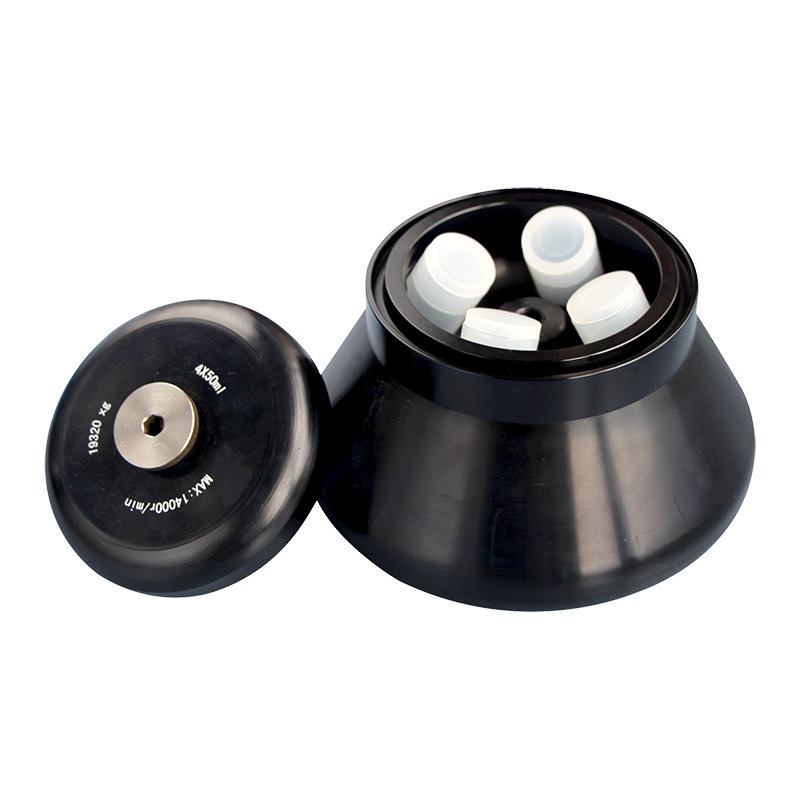

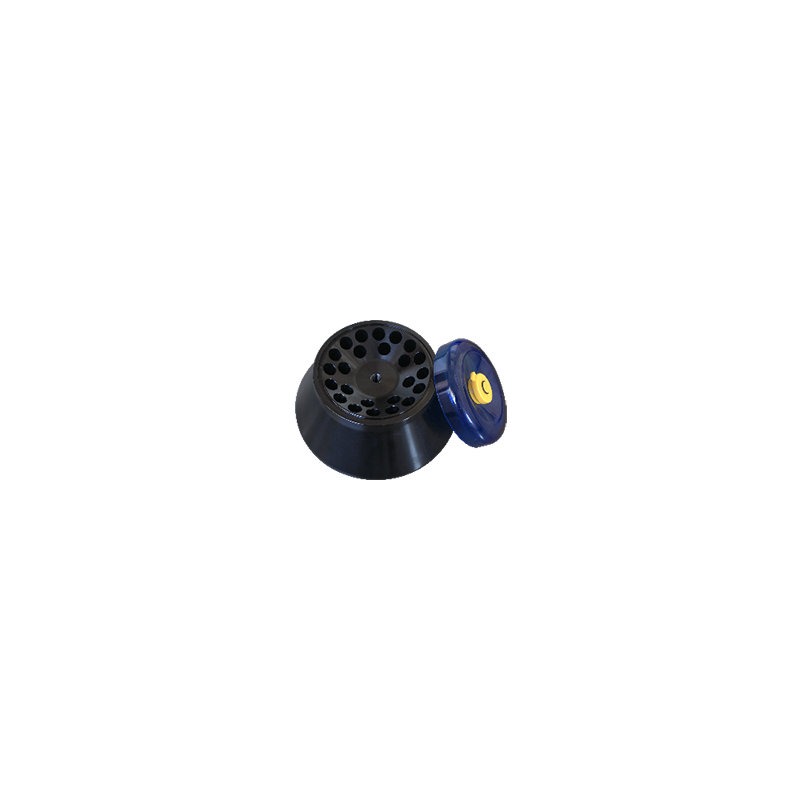

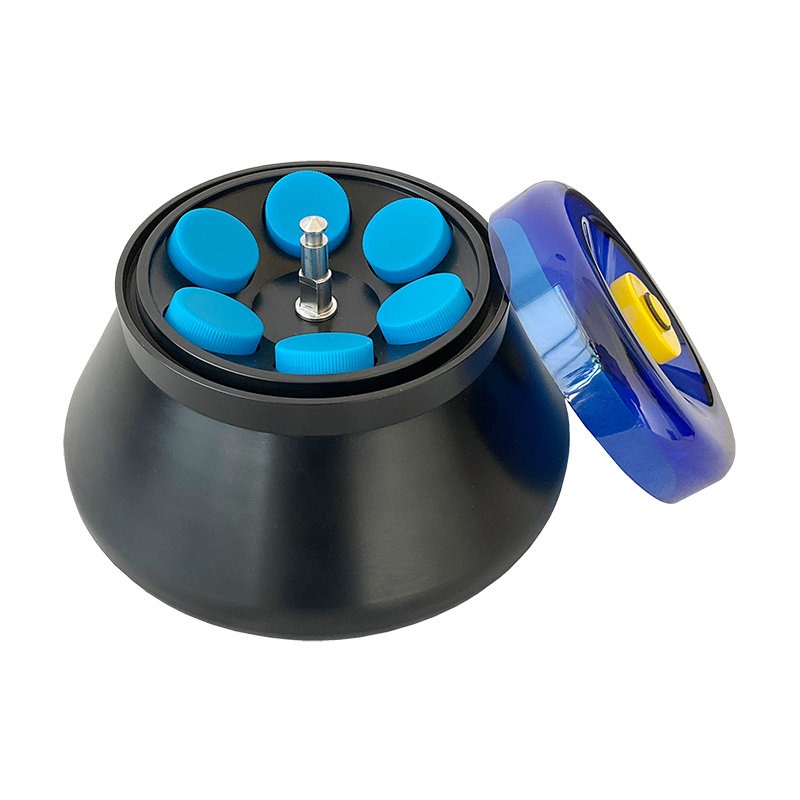

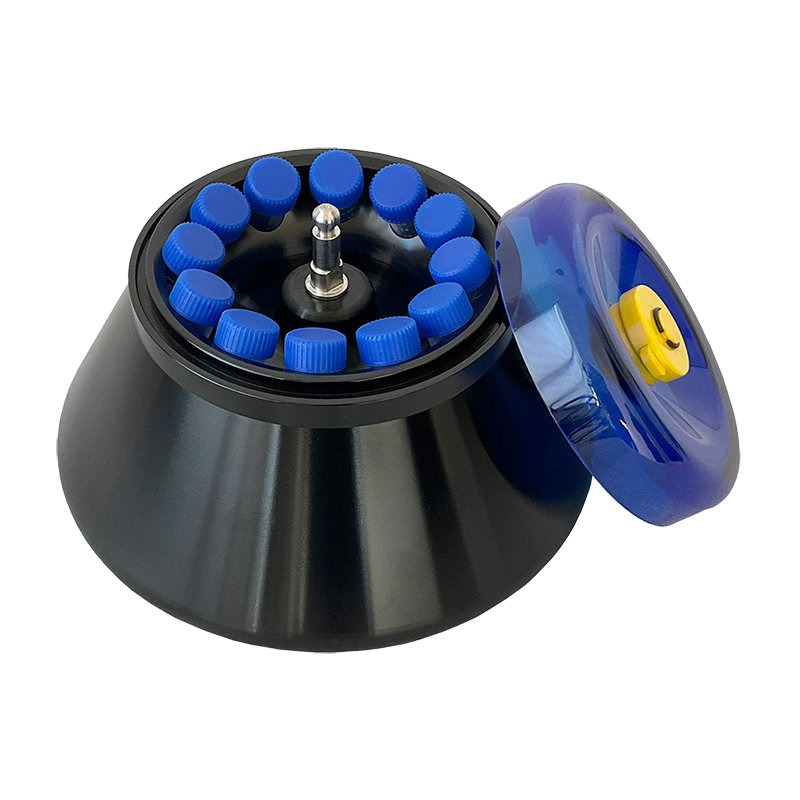

Easy loading and unloading rotors with special rotor connectors and tools
Neither the lid nor the rotor can run in case the lid is open
Manual emergence lid release in case of unexpected power interruption

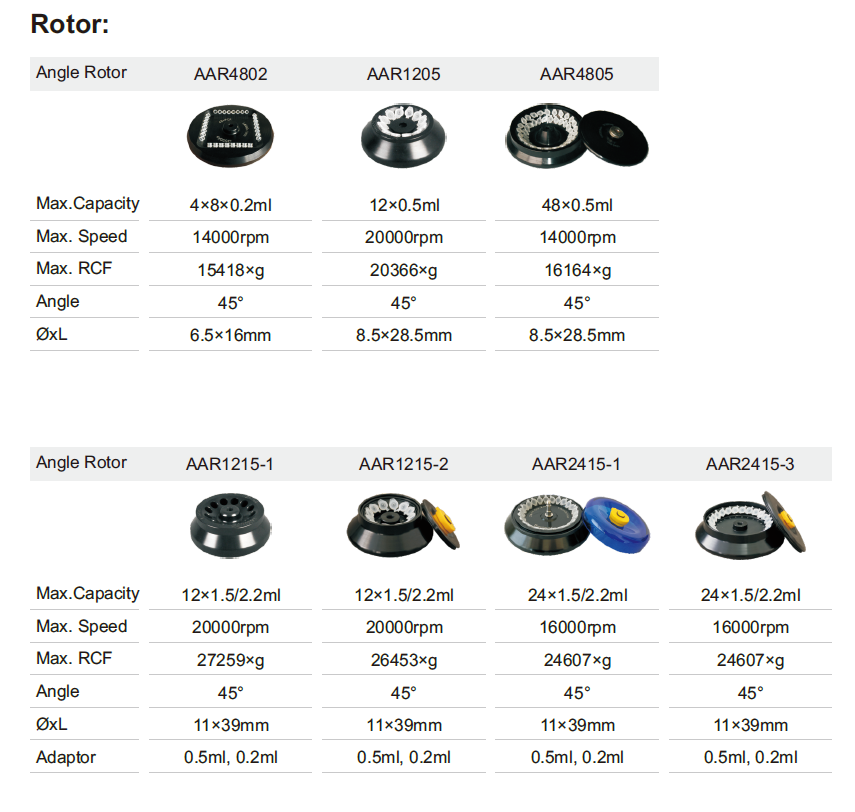

Rotor identification preventing rotor over speed
Noise level lower than 55dB
CFC free refrigerant R134a
Imbalance switch
Specifications
| Model | NovaFuge B114-20R | NovaFuge B115-20R |
| Display | LCD Colour Screen | LED |
| Max. Speed | 20000rpm | 20000rpm |
| Max. RCF | 27800xg | 27800xg |
| Max. Capacity | 4x100ml | 4x100ml |
| Temperature Control Range | -20℃~+40℃ | -20℃~+40℃ |
| Temperature Control Accuracy | ±2℃ | ±2℃ |
| Speed Control Accuracy | ±20rpm | ±20rpm |
| Timing Range | 1min-99min59s | 1min-99min59s |
| Motor | Converter motor | Converter motor |
| Acceleration rate | 1~10(Programmable) | - |
| Deceleration rate | 1~10(Programmable) | - |
| Noise | <55dB | <55dB |
| *Power Supply | 220V/50-60Hz,18A | 220V/50-60Hz,18A |
| N.W. | 70KG | 75KG |
| G.W. | 80KG | 85KG |
| Dimensions(DxWxH) | 620x500x350mm | 620x500x350mm |
| Packing Size(LxWxH) | 720x610x450mm | 720x640x460mm |
