750L Low Temperature/ Refrigerated BOD Incubator NovaIncu-750B(Programmable)
Detail

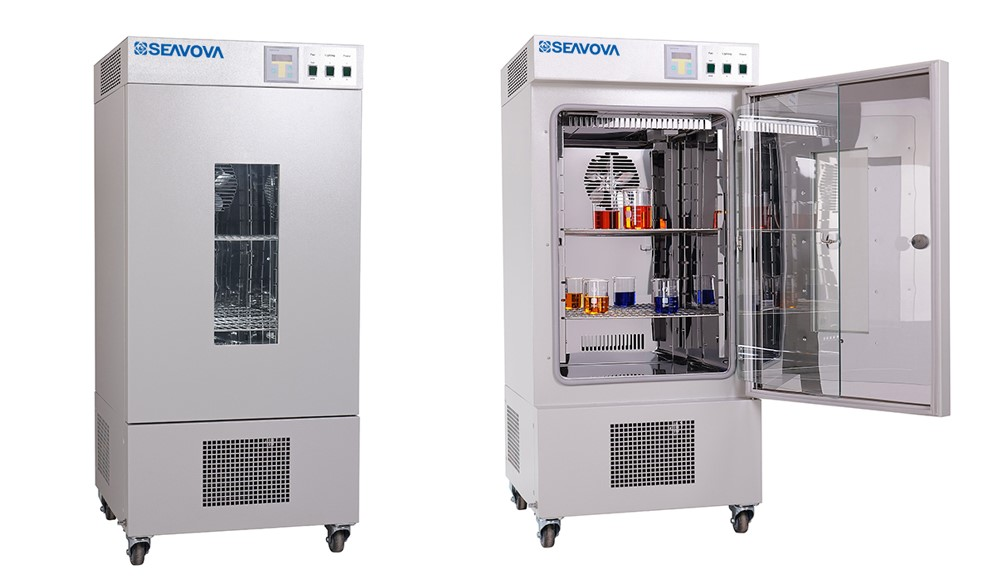

750L BOD Incubator NovaIncu-750B (Programmable)
Features:
10-segment temperature control program to realize temperature curve program running.
Adjustable inflow and outflow air speedStainless steel working chamber and powder coated steel housing
Dual-layer toughened glass window
Double door structure
Stainless steel shelf with adjustable space
Compressor with over-pressure and under-pressure protection, intelligent defrost, self-checking on-and-off control programme and internal refrigeration device.
Omni-directional 3D heating technology ensuring uniformity of chamber temperature, with independently-controlled illumination inside the chamber
Equipped with 110V or 220V power socket, convenient for BOD tests
Temperature controller with high-peed, high-performance CPU chip
High-sensitivity and high precision Pt resistance sensor
Preset programmed control with timing range up to 99 hours for power-on, power-off and working
Multiple alarms for sensor failure, high/low temperature deviation, over temperature
Parameter memory
Temperature display calibration
Dynamic self-diagnostic control technology
Optional:
-UV lamp
Specifications
| Model | NovaIncu MD-80A/80B *Notes | NovaIncu MD-150A/150B *Notes | NovaIncu MD-250A/250B *Notes | NovaIncu MD-360A/360B *Notes | NovaIncu MD-450A/450B *Notes | NovaIncu MD-750A/750B *Notes | NovaIncu MD-1000A/1000B *Notes | |
| Chamber volume(L) | 80 | 150 | 250 | 360 | 450 | 750 | 1000 | |
| Temp. Control Range | 0℃～70℃ | |||||||
| Temperature | Resolution | 0.1℃ | ||||||
| Fluctuation | ±0.5℃ | |||||||
| Uniformity | ± 1℃ at 37℃ | ± 1.5℃ at 37℃ | ± 2℃ at 37℃ | |||||
| controller | PID microprocessor control, soft touch, LED display | |||||||
| Sensor | Pt 100 resistor | |||||||
| Timer | Power-on, power off and working. Timing range: 1min-99hr | |||||||
| Material | Internal | Mirror polished 304 stainless steel | ||||||
| External | Steel (powder coating) | |||||||
| Dimensions (WxDxH,cm) | Internal | 40×40×50 | 50×40×75 | 55×50×90 | 65×60×95 | 70×65×95 | 85×80×110 | 95x90x115 |
| External | 55×65×118 | 65×65×143 | 70×75×158 | 80×85×173 | 85×91×173 | 100×115×188 | 110x115x198 | |
| Net Weight(Kg) | 82 | 92 | 120 | 160 | 195 | 235 | 300 | |
| Consumption Power (W) | 470 | 670 | 900 | 1110 | 1530 | 2260 | 3100 | |
| Shelf Size(mm) | 378×380 | 478×380 | 488×480 | 628×580 | 640×628 | 784×780 | 928×88 | |
| Shelf Qty (Standard/Max.) | 2/5 | 2/10 | 2/13 | 3/13 | 3/13 | 3/17 | 3/18 | |
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |||||||
*Notes:
MD80B/150B/250B/360B/450B/750B have10-segment temperature control program to realize temperature curve program running. The inflow and outflow air speed is also adjustable.
