50L 250℃ Floor Standing Vacuum Oven NuOven VQ52-3 with Chamber Wall Heating
Detail
50L 250℃ Floor Standing Vacuum Oven NuOven VQ52-3 with Chamber Wall Heating
It is applicable to such tests as drying heat treatment of articles under vacuum conditions in scientific research, medical, and industry, especially for the drying of material which is thermo-sensitive or decompounded and oxidative easily.

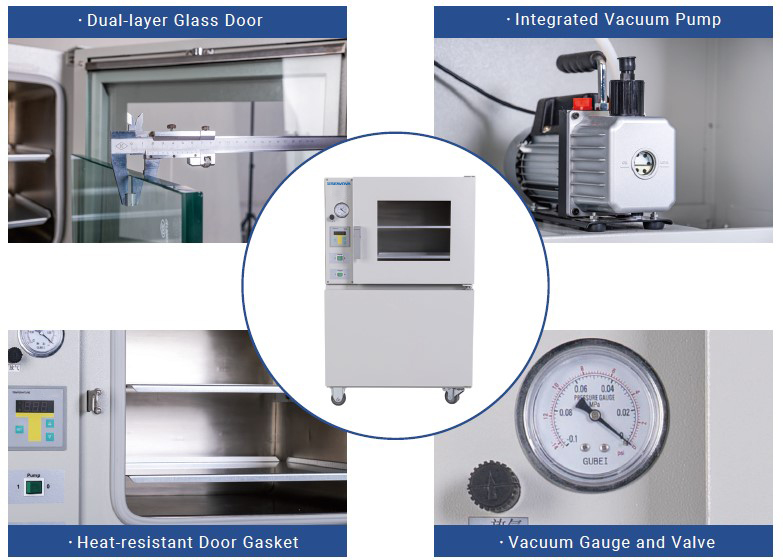

Features:
Stainless steel working chamber
Powder coated steel housing with dual-layer toughened glass window

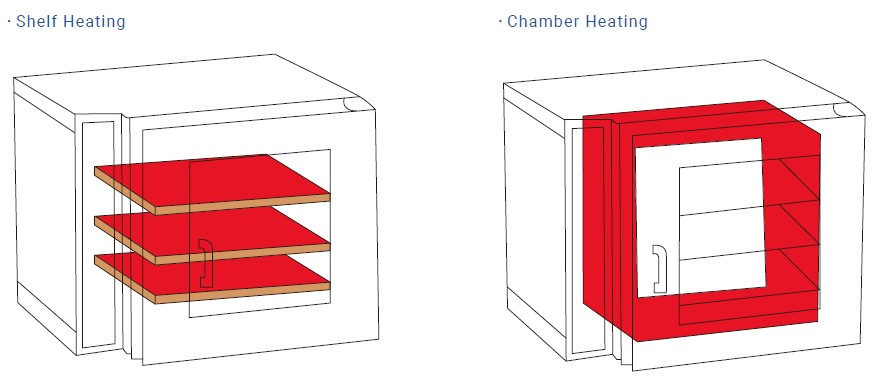

Chamber wall heating(chamber wall is heated on 4 sides)
Adjustable door locking tightness. Rotary plate and lighting included
Closed-cell silicon gasket ensuring high vacuum degree. Vacuum oil backflow proof
Electromagnetism valve and vacuum pump included, easy to release pressure
Temperature controller with high-peed, high-performance CPU chip
High-sensitivity and high precision Pt resistance sensor
Preset programmed control with timing range up to 99 hours for power-on, power-off and working
Multiple alarms for sensor failure, high/low temp. deviation, over temperature
Parameter memory
Temperature display calibration
Dynamic self-diagnostic control technology
A vacuum pump includes as standard configuration
Digital vacuum meter (NuOven VQ52-4/52-6/91-2/91-4/210-4) with vacuum control of setting min/max. vacuum & automatic circulation.
Optional:
-Digital vacuum meter (For models except NuOven VQ52-4/52-6/91-2/91-4/210-4)
Specifications
-NuOven VQ52-5,52-6,52-8,91-3,91-4,210-3 and 210-4:With 10-segment temperature control program to realize temperature curve program running.-NuOven VQ52-4, 52-6, 91-2, 91-4, 210-2 and 210-4:Digital vacuum gauge included for vacuum degree control while other models have mechanical vacuum gauge.
| Model | NuOven VQ 52-3/52-4/52-5/52-6 | NuOven VQ 52-7/52-8 | NuOven VQ 91-1/91-2/91-3/91-4 | NuOven VQ 210-1/210-2/210-3/210-4 | |
| Chamber volume (L) | 50 | 50 | 90 | 210 | |
| Temp. Control Range | RT+10-250℃ | RT+10-400℃ | RT+10-250℃ RT+10-250℃ | ||
| Temperature | Resolution | 0.1℃（≤100℃）；1℃（＞100℃） | |||
| Fluctuation | ±1℃ | ||||
| Controller | PID microprocessor control, soft touch, LED display | ||||
| Sensor | PT100 | ||||
| Timer | Power-on, power off and working. Timing range: 1min-99hr | ||||
| Material | Internal | 304 stainless steel | |||
| External | 08F | ||||
| Dimensions (WxDxH,mm) | Internal | 415×370×345 | 450×450×450 | 560×640×600 | |
| External | 710×510×1110 | 770×570×1170 | 610×590×1380 | 720×730×1660 | |
| Vacuum Degree | 60Pa | ||||
| Heating Method | Surrounding heating | Shelf heating Shelf heating Shelf heating | |||
| Net Weight(Kg) | 145KG | 155 | 145 | 230 | |
| Consumption Power(W) | 1720 | 2070 | 1120 | 2100 | |
| Shelf Qty(Standard/Max.) | 2/2 | 3/3 | |||
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | ||||
| *Note: -NuOven VQ52-5,52-6,52-8,91-3,91-4,210-3 and 210-4:With 10-segment temperature control program to realize temperature curve program running. -NuOven VQ52-4, 52-6, 91-2, 91-4, 210-2 and 210-4: Digital vacuum gauge included for vacuum degree control while other models have mechanical vacuum gauge. |
