150L Horizontal Cylindrical Autoclave HCPS-A150
.....
Detail

150L Horizontal Cylindrical Autoclave HCPS-A150

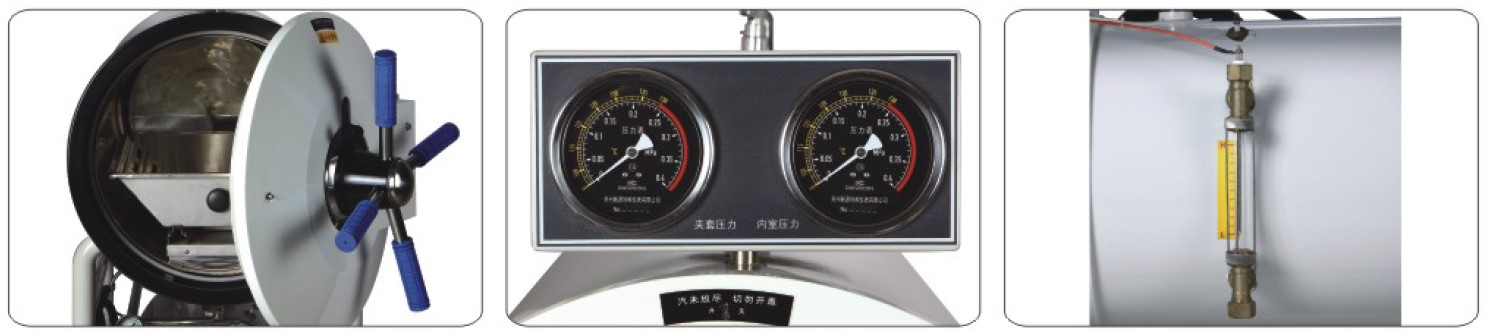

Features:

Stainless steel chamber

Microprocessor controlled sterilizing process

Drying function, suitable dressing drying

Over-temperature, over-pressure protection

Door is locked if chamber pressure is above 0.027MPa

Stop run if the door is not closed well

The safety value is opened automatically and steam is exhausted to the water tank when the inner pressure over 0.24MPa

Automatic power off, water cut off and alarm when lacking water

Printer included

Specifications

Technical dataHCPS-A150HCPS-A200HCPS-A280HCPS-A400HCPS-A500
Chamber volume150L200L280L400L500L
Chamber sizeφ440×1000mmφ515×1000mmφ600×1000mmΦ700×1100mmΦ700×1300mm
Working pressure0.22MPa
Working  temperature134℃
Adjustment of temperature105℃ - 134℃
Sterilization time0-60 min
Drying time0-60 min
Heat average≤±2℃
Power9KW,380V/50Hz9KW,380V/50Hz12KW,380V/50Hz18KW,380V/50Hz18KW,380V/50Hz
Dimensions1400×600×13001400×670×16501400×770×17801430×880×18301800×900×1820
Packing size1550×750×18501560×820×18501680×920×21001600×1050×21001850×1050×2100
G.W/N.W(Kg)320/240350/260465/365530/420580/470
