Product Detail

Low Speed Refrigerated Benchtop Centrifuge NovaFuge B124-5R(LCD)
.....
Detail

NovaFuge B124-5R(LCD)

  It is widely used in clinical medicine, clinical laboratory, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.

Feature:

1.     Stainless steel chamber with guarding ring.

2.     Reliable drive system. Variable frequency motor maintenance free.

3.     Motorized lid locks prevent cover opening during centrifugation.

4.     Manually lid open in case of failure or emergency.

5.     Pneumatic spring supports prevent falling of lid.

6.     Pre-cooling during standstill. CFC free refrigeration system.

7.     Recall of last settings. Parameters can be changed during operation.

8.     Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.

9.     The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

10.  TFT touch screen easy to read and values selection (only for NovaFuge B124-5R(LCD)).

12.  * Optional:

Automatic lid opening at the end of run.

Short spin.

Rotor identification.

Program memory.

Technical data

ModelNovaFuge B124-5R(LCD)NovaFuge B124-5R(LED)

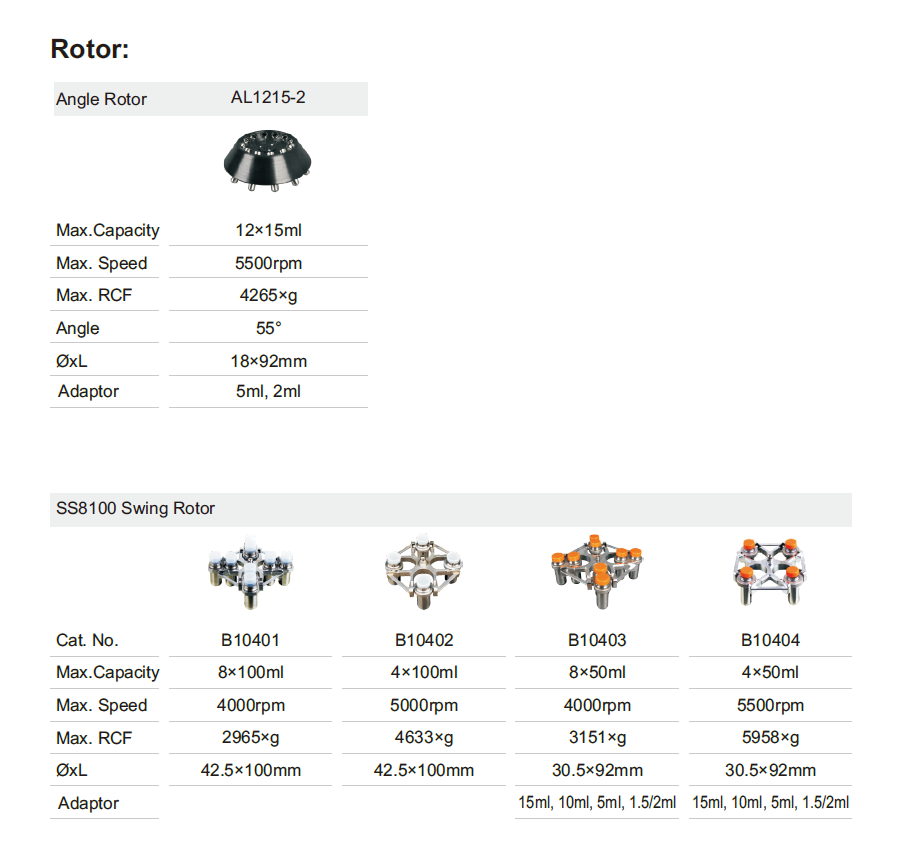

Max. RPM/RCF for angle rotor5500rpm / 4265×g
Max. RPM/RCF for swing rotor5500rpm / 5958×g
Max. Capacity for angle rotor12×15ml

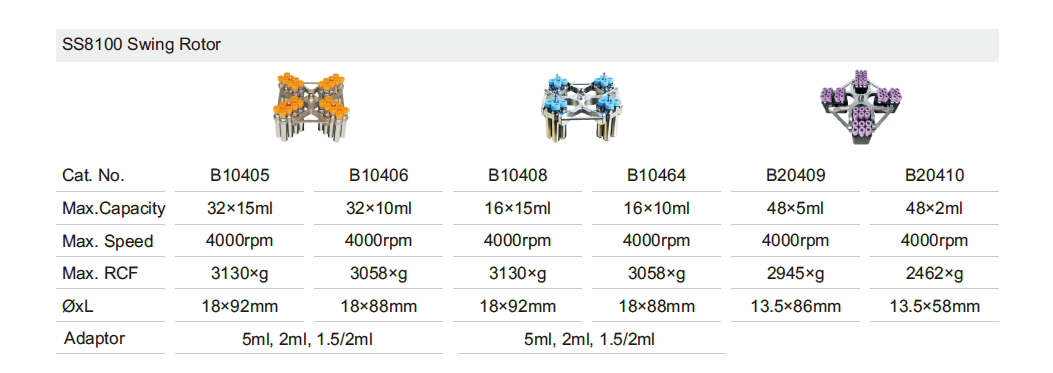

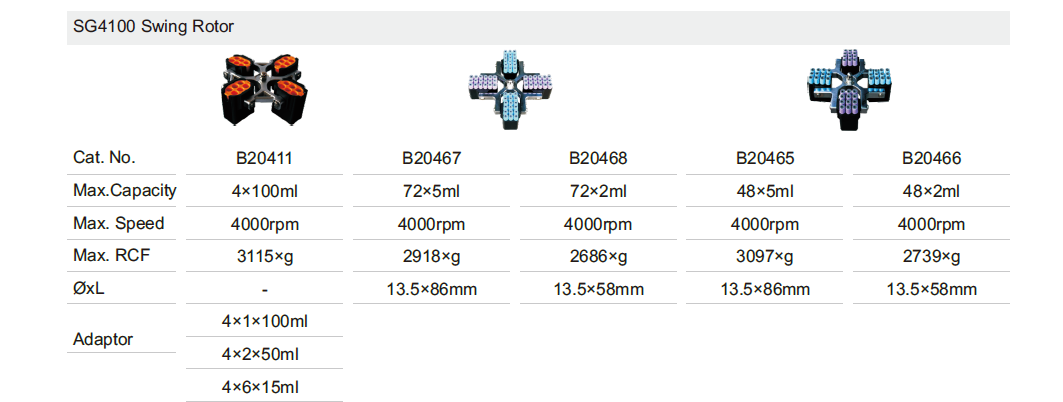

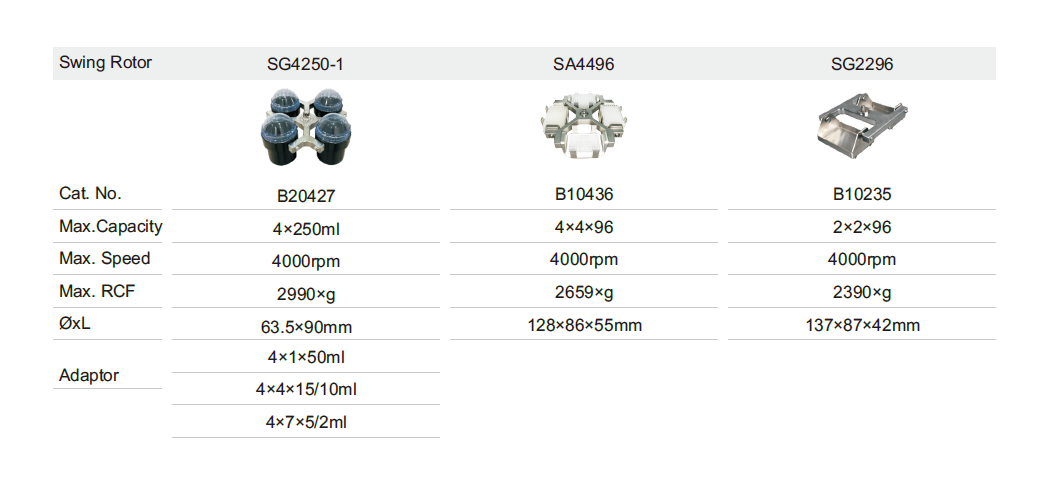

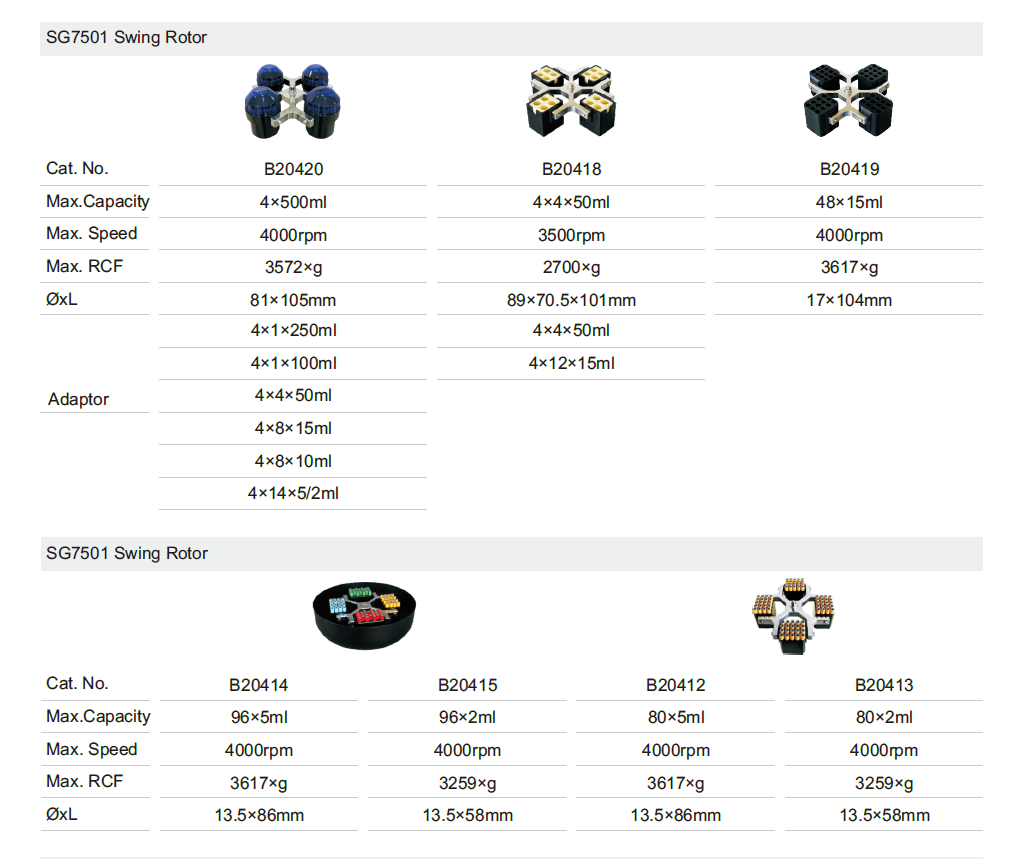

Max. Capacity for swing rotor4×500ml, 96-well plates
Speed increment-50rpm
Speed accuracy±20rpm
Temp range-20℃~+40℃
Temp accuracy±2℃
Timer range0min~99min59s1min~99min
Acc / Dec rates10/10-
Program memory*30-
Short spin function*√-
Power supplyAC220V / 50~60Hz
Power requirement1.4KW
Noise<58db
DisplayLCD Touch ScreenDigital display
Machine bodyPlastic and metal frameMetal frame
Net weight (without rotor)113kg118kg
Machine dimension(L×W×H)840×610×510mm830×640×400mm
