Refrigerated Floor-top High-Capacity Centrifuge NovaFuge F103-6R
Detail
Refrigerated Floor-top High-Capacity Centrifuge NovaFuge F103-6R
It is widely used in clinical medicine, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.
Feature:
1. Power coated housing. Universal castors.
2. Reliable drive system. Converter motor maintenance free.
3. Motorized lid locks prevent cover opening during centrifugation.
4. Pneumatic spring supports prevent falling of lid.
5. Manually lid open in case of failure or emergency.
6. Pre-cooling during standstill. CFC free refrigeration system.
7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
8. RPM/RCF adjustable along with the run and value calculating automatically.
9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
*Automatic lid opening at the end of run.
*Short spin.
* Rotor identification.
Technical data
| Model | NovaFuge F103-6R |

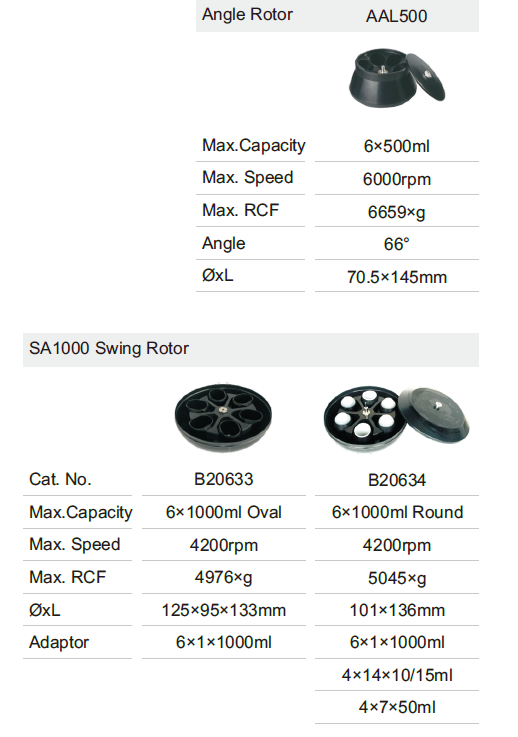

| Max. RPM/RCF for angle rotor | 6000rpm / 6659×g |
| Max. RPM/RCF for swing rotor | 4200rpm / 5045×g |
| Max. Capacity for angle rotor | 6×500ml |
| Max. Capacity for swing rotor | 6×1000ml |
| Speed Increment | 10rpm |
| Speed accuracy | ±20 rpm |
| Temp. range | -20℃~+40℃ |
| Temp accuracy | ±2℃ |
| Timer range | 0~99min50s / 23h59min |
| Acc / Dec rates | 12/12 |
| Program memory | 99 |
| Power supply | AC220V 50/60Hz |
| Power requirement | 3KW |
| Noise | <58db |
| Display | LCD screen |
| Motor | Converter Motor, direct drive |
| Net weight (without rotor) | 235kg |
| Machine Dimension（L×W×H） | 730×830×1200mm |
