Laboratory Glassware Washer (with drying)BWD-200PLUS

Main features

Microprocessor  with  PLC  control  system  anti-EMI (electrical   magnetic   interface).

7"colorful  touch  screen  is  easy  control  and  obse- rvation,and  it  display  the  work  situation.

Password  protection  with  three  levels  can  meet diOerent  management  needs  which  block  the    authorized    entry.

Parameters  setting  memory  for  power  failure,washer  cycles  is  going  on  as  soon  as power  comes  back.

Safety  protection  water  temperature  and  dry  air  temperature,when  the  temperature exceed  the  setting,it  will  stop  working.

Safety lock with electromagnetic release to prevent door opening while it is in wash/dry cycle. 。Safety  electrical  system  for  circuit  overload,short  circuit,over  current  and  leakage  current. 。 Safety  emergency  button  for  stop  the  unit  in  time.

The door is anti-fall and anti-rebound design,and can be stopped at any angle from O to 90 degrees  after  opening.

Alarm    system:circulating    pump    overheated,water heating    abnormal,air    heating    abnormal,cleaning  agent  shortage,door   is   not   closed,water   intake    abnormal,overDow      alarm,etc.

USB  port for exporting all the data  relative to  completed washing  and  disinfection  programs.

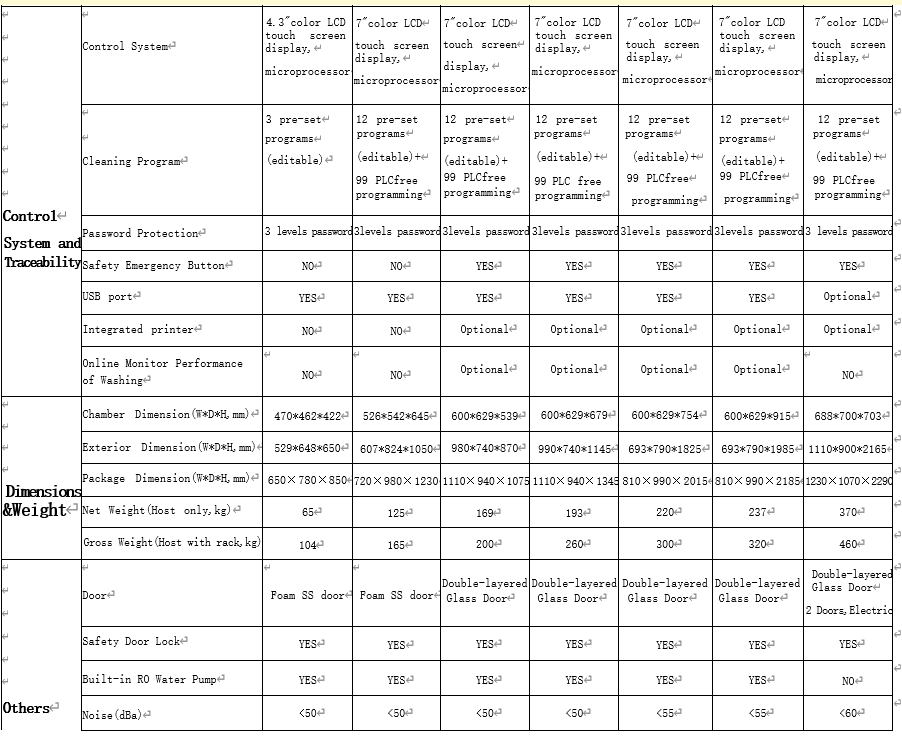

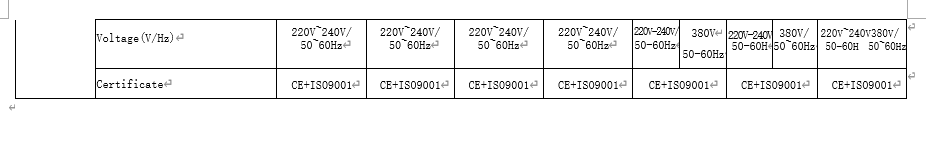

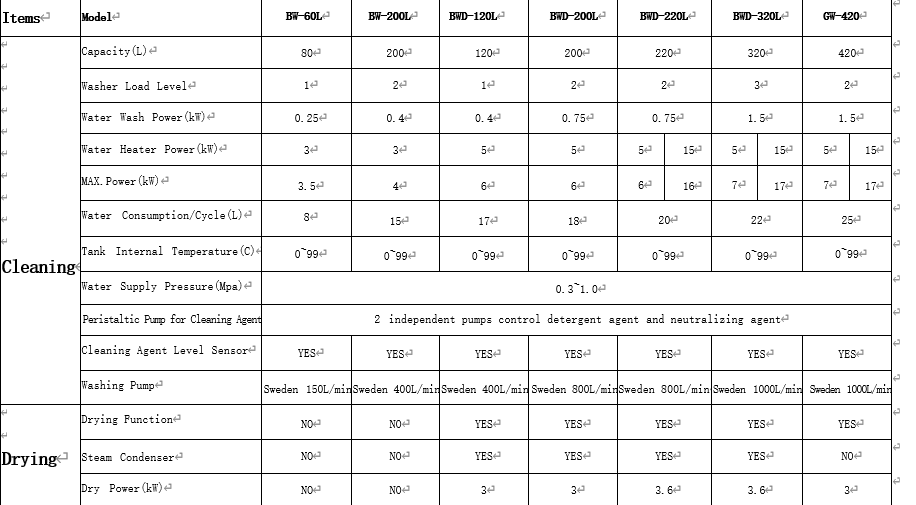

Specifications
