Pure(RO)/ Ultra Pure Water System TopPure15B-ET1

The industry's most complete water purification solution for highly regulated applications.

When your application requires the ultimate in water purity, this product provides the perfect solution. Consistently delivering water purity of 18.2MΩ.cm and underpinned by the advanced technologies, this model enables you to focus on attaining accurate results while ensuring an uninterrupted work flow.

Typical scientific applications

ICP-MS(Inductively Coupled Plasma Mass Spectrometry)

Molecular biology techniques

Ultra trace analysis

Electrochemistry

Electrophoresis

GFAAS(Graphite Furnace Atomic Absorption Spectrophotometry)

HPLC

IC(Ion Chromatography)

ICP-AES(Inductively Coupled Plasma Atomic

Emission Spectrometry)

Mammalian and bacterial cell culture

Molecular biology

Plant tissue culture

Qualitative analysis

Not just a bigger display. A better display

Features

Big LCD display with touch screen.

Online TOC for prevention of organic breakthrough

Constant real-time Total Organic Carbon(TOC) monitoring* allows you to verify that the system's organic contaminants removal process is operating within specifications

Several benefits:

Oxidation and conductivity measurements occur in the same cell. As a result, the monitor checks that all organics have been oxidized in order to deliver an accurate and reproducible TOC value

An accurate measurement of TOC between 1 and 300 ppb is provided, based on extended calibration

The design allows performance of the TOC suitability test as required by USP 643 and EP (European Pharmacopoeia)

Premium water delivery

Each remote water dispenser has a backlit screen enabling the user to check system operation and water quality at a glance.

Dispenser units are placed on a recirculation loop, and can be located up to 3 meters from the main unit or from the previous dispenser on the loop.

Easy operation that allows users to select either manual or automatic delivery to save valuable time.

Dispensers are designed to accommodate all commonly used glassware.

For hands-free water delivery, an optional footswitch can be connected to the system. Press once to start and once to stop.

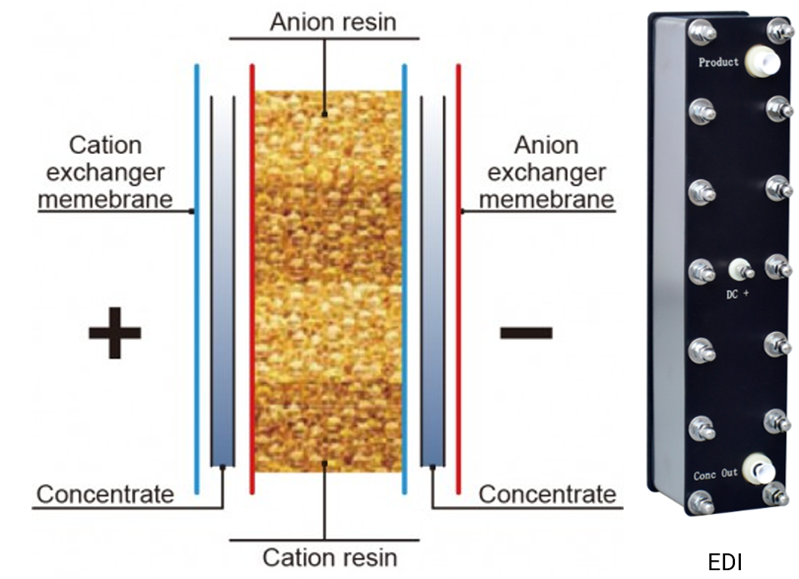

EDI know-how

Adoption of Electrodeionization (EDI) module brings benefits including lower energy consumption; lower maintenance cost; better ion exchange and no particulates or organic contamination

The Smart Plus NE/Smart Plus E models incorporates state-of-the-art Electrodeionization (EDI) technology to purify the water instead of only using conventional ion exchange.

EDI is an electrically-driven water purification process which involves the use of Ion Exchange Resins and Ion Permeable Membranes. Resins are continuously regenerated by the electrical current and are never exhausted.

What benefits you can get

Constant high efficient removal of ions and small MW charged organic (Resistivity > 10 MΩ‐cm)

No exchange of spent resins

No regeneration chemicals

Low energy consumption

Typical <10 watt light bulb

Low operating cost and low maintenance

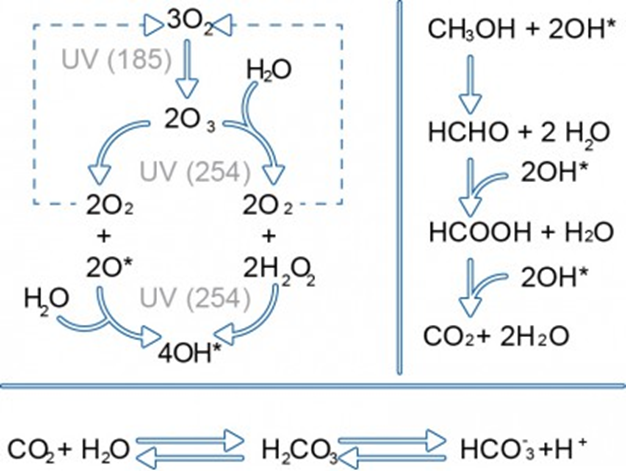

Full Spectrum UV treatment

Low microbial and organic specification

High transmittance synthetic quartz sleeve for higher efficiency

Patented lamp life indicator is designed to predict lifespan according to actual conditions

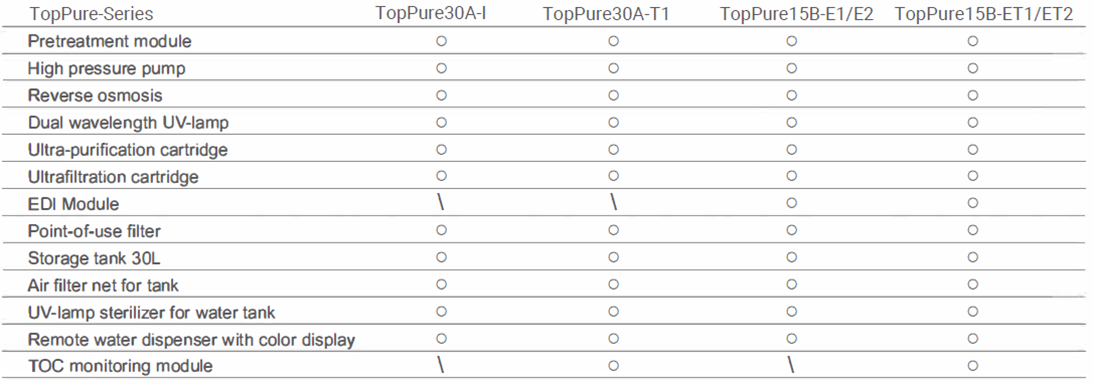

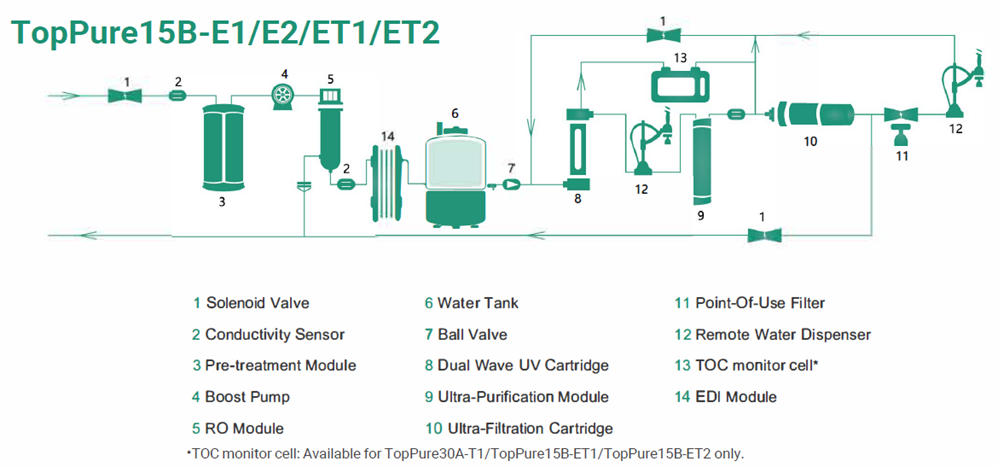

Configuration
