Pure(RO)/ Ultra Pure Water System Supure15UV-I

It is a compact solution that combines the production of pure water and ultra-pure water in a single unit- eliminating the need for a pre-treatment stage upstream of the ultra-pure water system.

Features

Simplest operation!

Just four control keys allow for rapid operational readiness to improve user experience.

• Everything else is automatically managed by the built-in microprocessor control system
• PIN-coded access to software set points prevents unauthorized changes to operation or system settings

Rapid cartridge replacement!

• One,two,three...rapid catridge change due to quick-connection
• Water purification progresses through separate modules, each with quick connects for simple individual replacement
• Streamlined apperance and intelligent structural design with easy-access door means system can be located under bench
• Quick and easy sanitizationa and replacement of consumables reduce maintenance time

Reliable work!

• Integrated feedwater check
• Good quality feedwater is a basic requirement for the degree of purity of the water produced, as well as for the long service lives of all purification stages.
• An additional measuring cell permanently monitors the conductivity of the feedwater. Any exceeding of the limiting value is immediately displayed.

Conductivity measurement!

• The high-precision conductivity measuring cells are individually measured out and each value deposited in the system
• The electronics are automatically calibrated and controlled prior to each measurement.

Temperature compensation!

• Platinum chip temperature sensors with an accuracy of +/- 0.1° C are used here
• The temperature compensation can be switched off. USP requirements are fulfilled and optimal measurement reliability ensured.

Flexible dispensing!

• Remote water dispenser with ergonomical design comforts your water delivery experiences.
• The height and direction of dispenser is adjustable for different positions. Action radius is 25cm
• The dispensing pistol can be removed from dispenser arm to expand your working area.
• Full recirculation guarantees water quality at point-of-use
• Auto-volume dispense from 100ml to 60 liters and repeat dispensing
• Foot-pedal activation is available to allow hands-free delivery in a clean room, further reducing the possibility of contamination.

Clear information!

• The large easy-to-read LCD display affords the user optimal convenience, with indication on:
• The temperature in °C
• The temperature-compensated conductivity/resistivity of water
• The operating mode status, such as production, stand-by
• Liquid level in water tank
• Consumable changing reminder

Water leakage protection!

• Water leakage sensor is linked to the microprocessor system to automatically cut off water input and activate alarm in the situation of leakage

Space saving!

• Each Smart series can be optional installed space-savingly under the bench, in a lab table, or mounted directly to the wall(without the need for extra mounting material).
• Remote dispenser can be connected to the main system at a distance of 3 meters. You can get water from height adjustable arm, or hand-held dispensing at each point- of-use

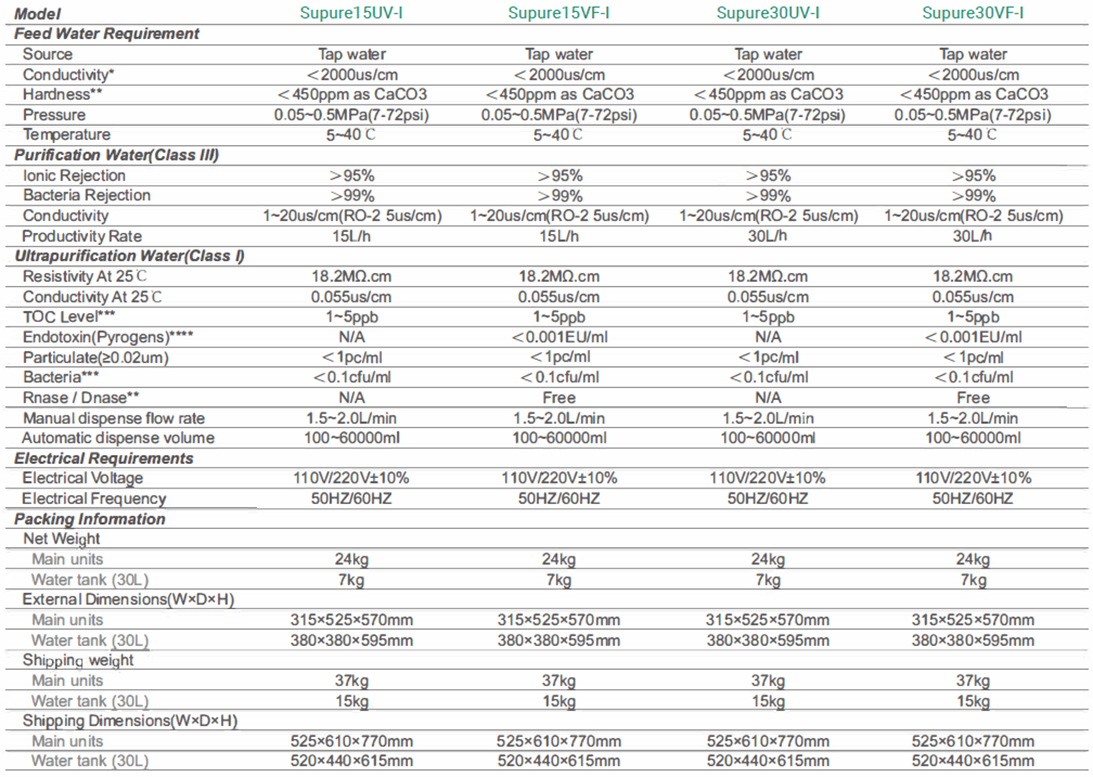

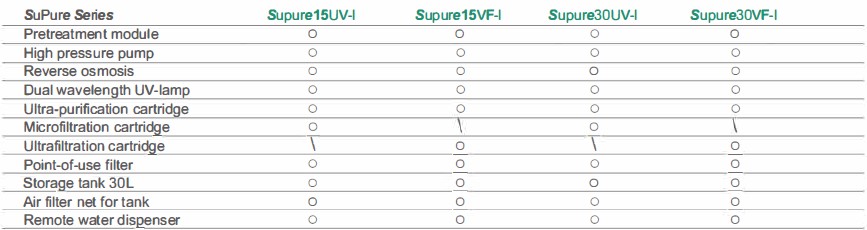

Configuration

* If feed water quality is poor(Conductivity > 1000us/cm), strengthened pretreatment module and R0-2 type is highly recommended

** When hardness of feed water is high(>450ppm as CaC03), 0 5T water soften is recommended

*** Dual wave UV module need to be adopted Also dependent on feed water, recommended feed TOC<30ppb

*** Ultra-filtration module need to be adopted Feed water need to be satisfied as above
